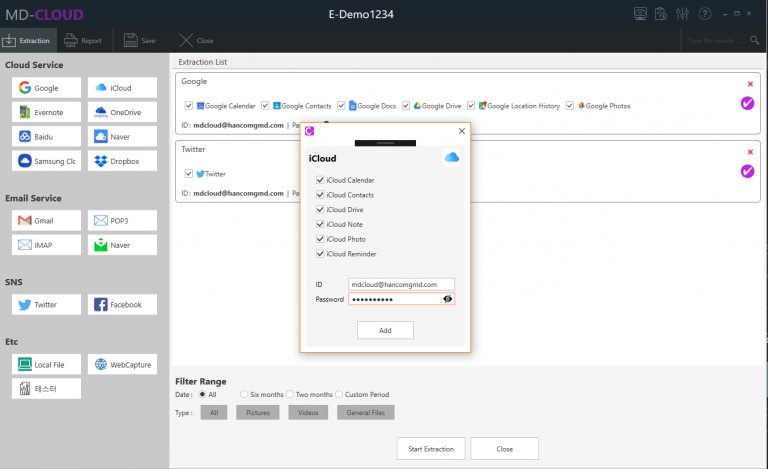

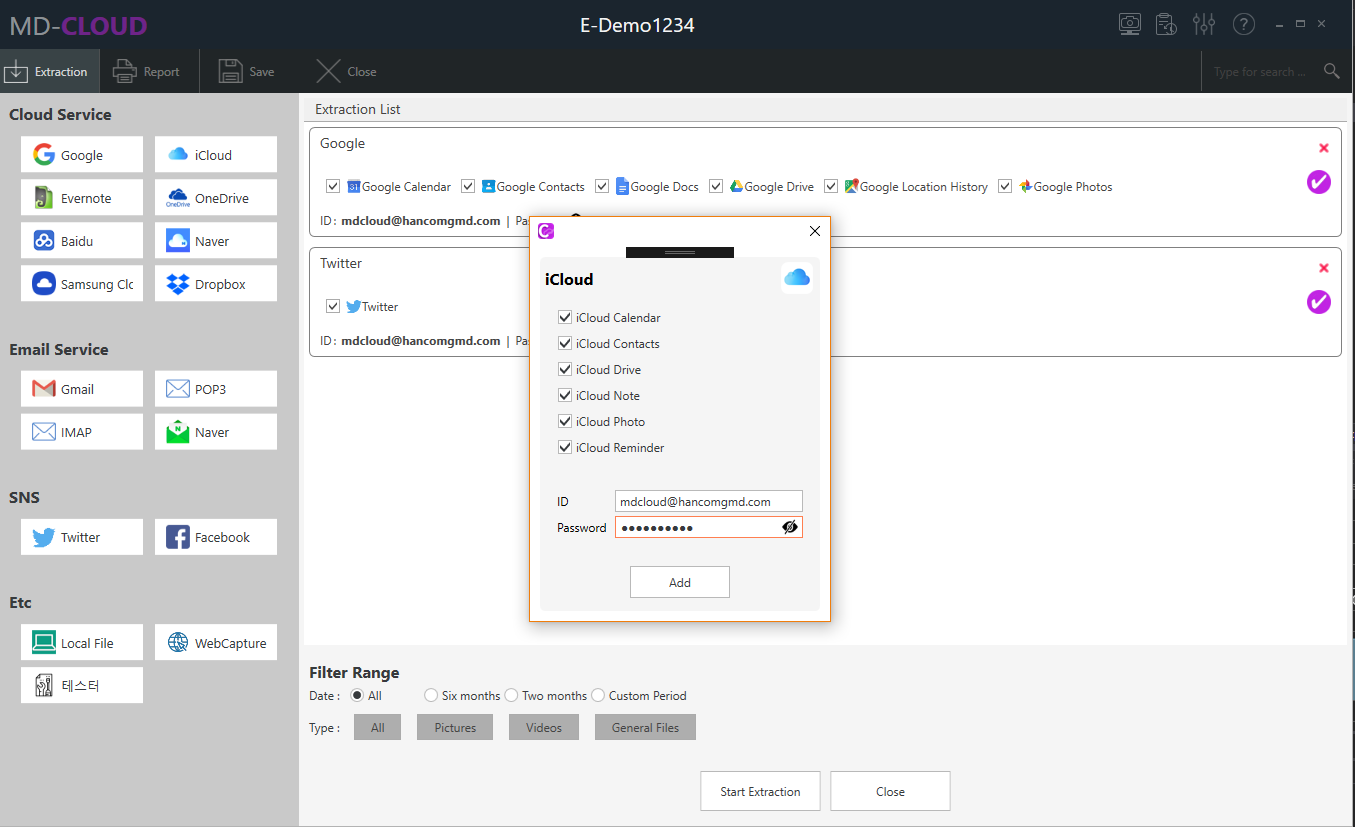

Learn moreMD-CLOUD
Extract and analyze evidence from cloud sources.

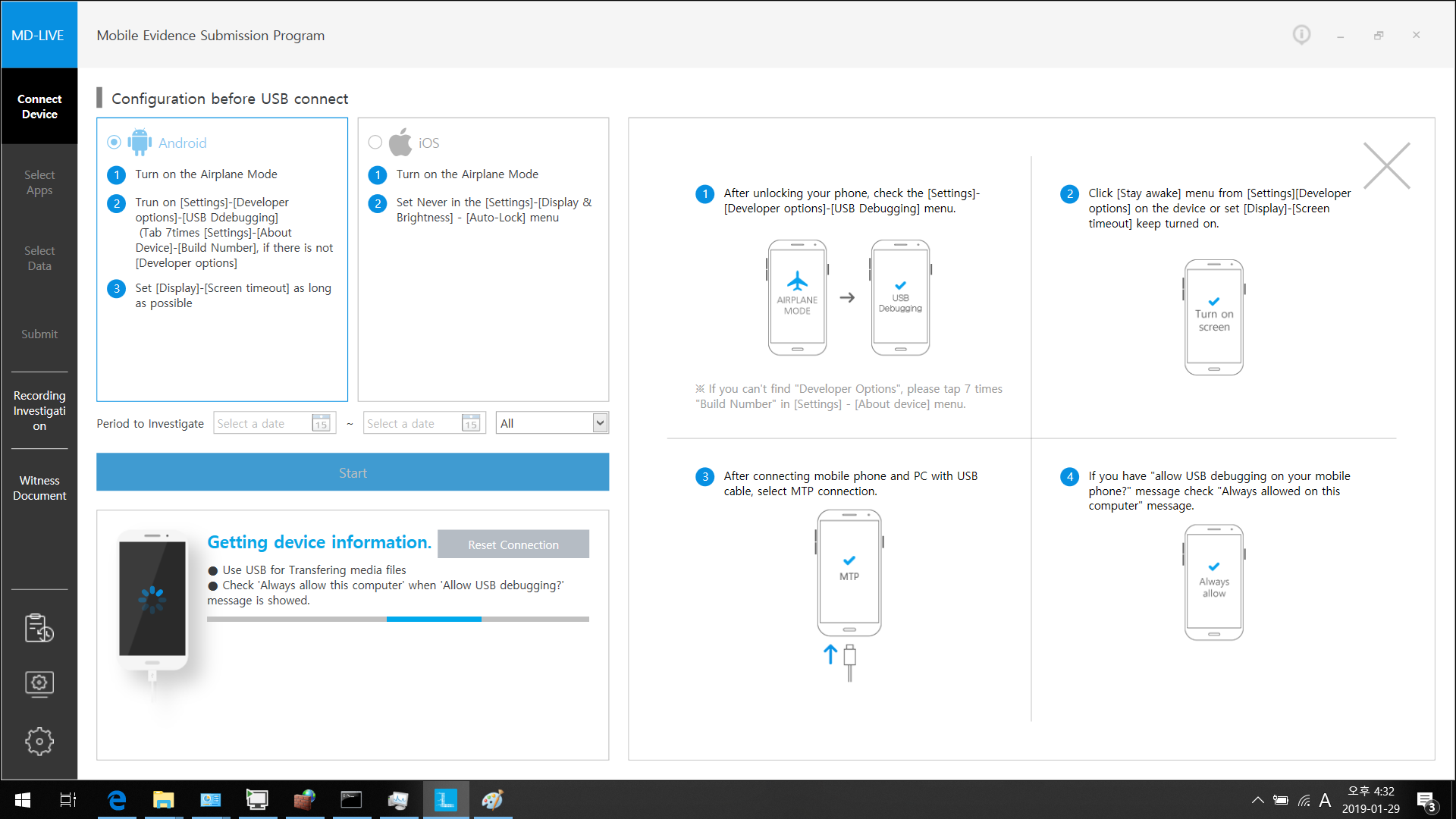

Learn moreMD-LIVE
Perform rapid on-scene extraction and examination.
Learn moreMD-NEXT
Mobile forensics software for Smartphone, Feature phone, Drone, Smart TV, Wearable, IoT device, USIM card, SD memory card, JTAG board, and Chip-off memory
MD-NEXT is a forensic software for data extraction from diverse mobile and digital devices. It supports physical and logical extraction methods for Android, iOS, Windows OS, Tizen OS, and other mobile OS.
MD-NEXT supports data extraction from MD-READER(Chip-off memory), MD-BOX(JTAG board), USIM reader, SD memory reader, OS backup protocol, agent app, and new cutting-edge extraction methods.
Product Highlights
MD-NEXT supports data extraction from MD-READER(Chip-off memory), MD-BOX(JTAG board), USIM reader, SD memory reader, OS backup protocol, agent app, and new cutting-edge extraction methods
Recommended Specifications
- Operating System : Windows 11 64Bit or higher
- - Latest Windows update
- Processor : Intel Core i5 or higher
- Memory : 16 GB or more
- Disk : Capacity 2 TB or more
- Resolution 1920 * 1080 or higher
Minimum Specification
- Operating System Windows 10 64Bit
- - Latest Windows update
- Processor : Intel Dual Core or higher
- Installation Capacity : 8 GB or more
- Disk Capacity : 500 GB or more
- Resolution : 1024 * 768 or higher
Product components
- MD-NEXT Installation Software (CD/USB/Online)
- USB Dongle Key 1 EA
- Warranty 1 Year
Key Features
Complete Mobile Data Acquisition Tool
- - Supports data acquisition for various global smartphone manufacturers (Samsung/Apple/LG/HTC/ZTE etc.) models
- - Supports China Manufacturer (Huwei/Xiaomi/Oppo/Vivo, etc.) for large quantities of models
- - Supports extraction of IoT device, AI Speaker, Smart TV and Drone
Advanced physical extraction features
- - Supports Bootloader, Fastboot, MTK, QEDL, Custom Image Android Rooted, iOS Physical, DL, JTAG, Chip-off, SD Card, Removable Media
- - ADB Pro extraction: Supports data acquisition using vulnerability attacks from Android-based devices
- - JTAG pin map viewer and connection scanning with AP
- - Drone data extraction - DJI (Phantom, Mavic), Parrot, PixHawk
- - AI Speaker Chip-off extraction - Amazon Echo, Kakao Mini, Naver Clova
Supports diverse physical data reader hardware
- - JTAG Reader (MD-BOX)
- - Memory Chip Reader (MD-READER)
- - SD Memory Reader and USIM Reader
Advanced logical extraction features
- - Supports Android Live, MTP, iOS full filesystem Backup, Vendor backup protocol, Local backup, USIM
Supports extraction and decryption of the latest Asian phone
- - Physical extraction through all lock bypass(KNOX, FRP/OEM, Screen Lock): Samsung Galaxy S/J/A/Note series
- - Unlock screen: Samsung Galaxy S/J/A/Note series
- - ADB Pro physical KNOX bypass – Samsung Galaxy S/J/A/Note series
- - Vendor Backup protocol extraction – Samsung, LG, Huawei
- - Local backup extraction - Huawei, Xiaomi, Oppo, Gionee
- - Physical extraction for Japanese manufacturer model - Sharp, Sony
Supports the latest iPhone logical extraction
- - iOS keychain extraction
- - Logical extraction for iPhone up to XS/XR model
- - The decryption of backed up data for the latest version of the iOS device

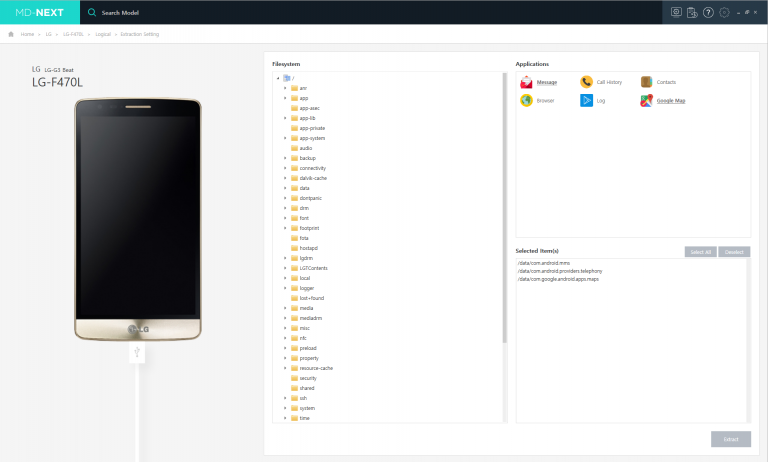

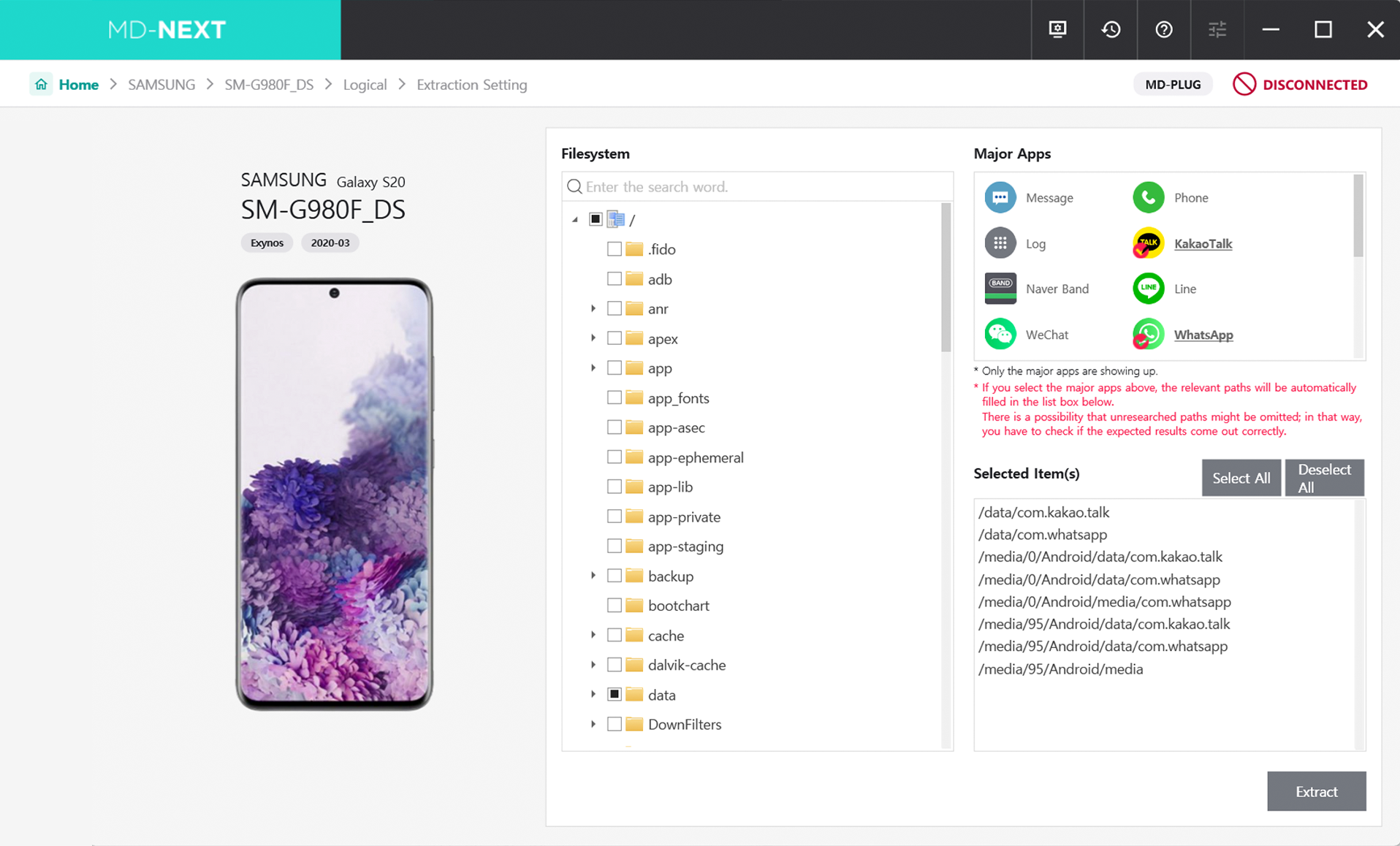

Selective extraction for privacy protection
- - Supports selective acquisition of partition, file, category, and app
Special extraction features
- - Supports user-defined extraction for unlisted models using pre-defined methods
- - Supports Google cloud drive extraction
Useful extraction utilities
- - Supports auto recognition and decryption of partition table and encrypted partition
- - Supports automatic firmware restoration and retrial after restoration failure
- - Supports resume of extraction
- - Supports merge of multiple image file - MDF and binary file
- - Support acquisition from PC backup files: iOS, Samsung, LG
Assurance of evidence data integrity
- - Supports write-protection to every evidence data
- - Supports various hash algorithms(MD5, SHA1/224/256/384/512, RIPEMD128/160/256/320)

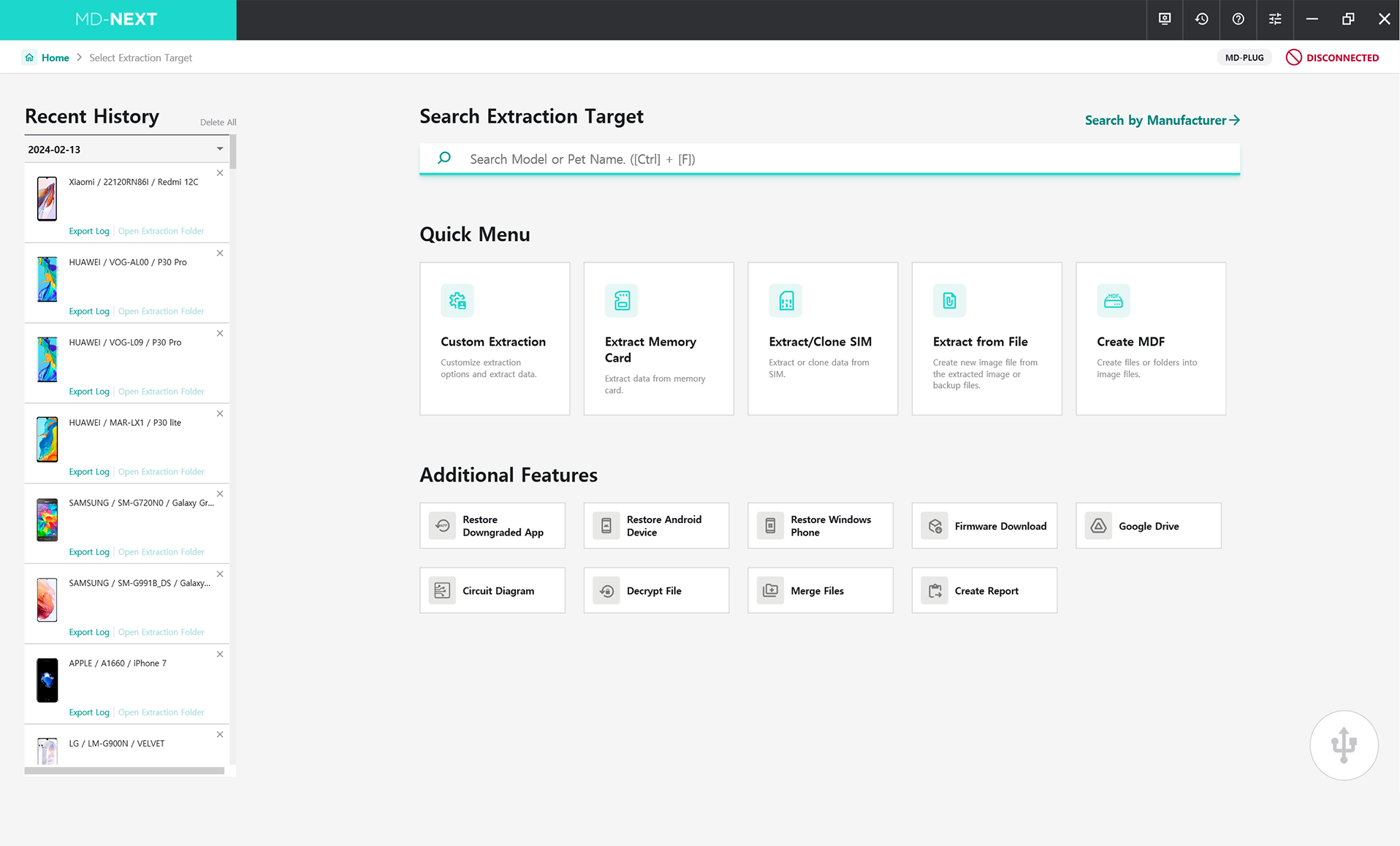

Easy and simple user-friendly UI
- - Intuitive graphical user guide for each extraction method

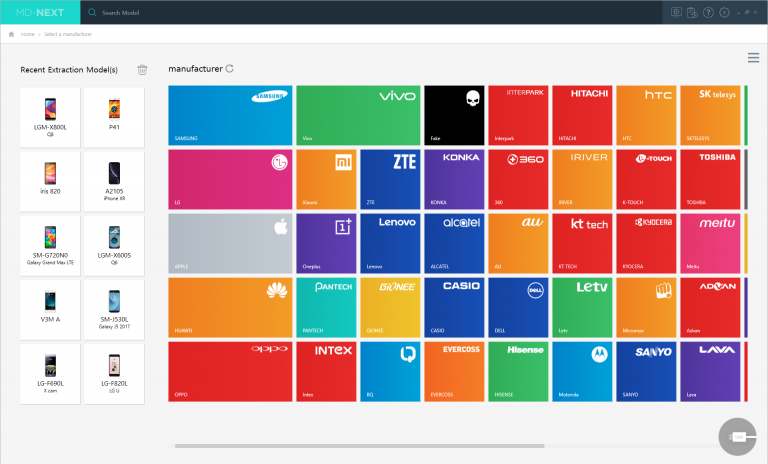

- - List of recently selected models
Data preview and save
- - Supports preview of the extraction data - Hex viewer
- - Sound alarm and TTS alarm for extraction status change

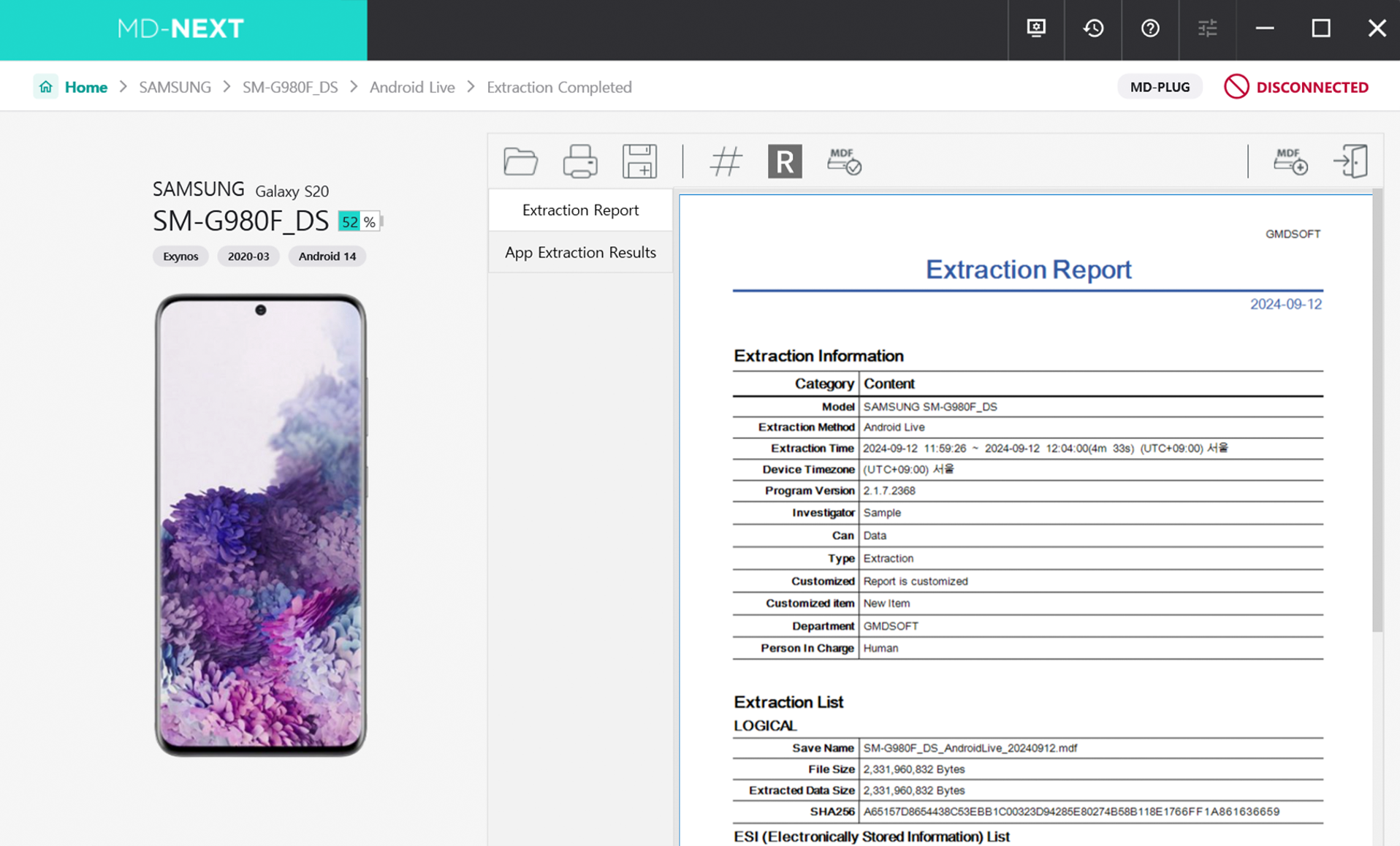

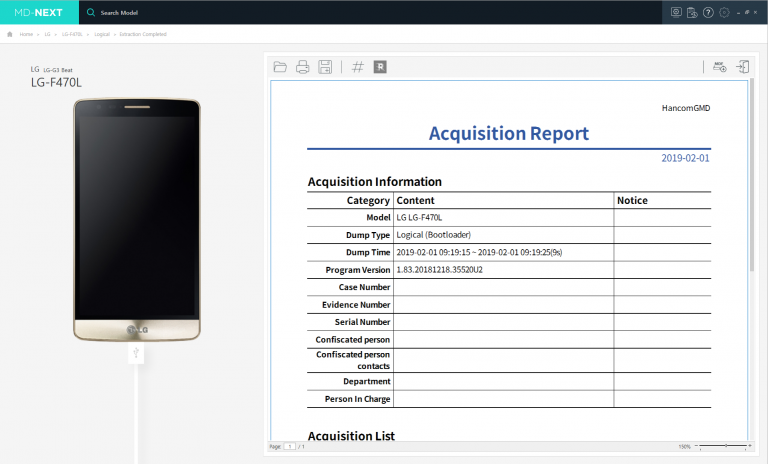

Reporting features
- - Extraction information - Hash value, Time, Method and Filename
- - Supports 'Extracted File List' generation with a hash value of each file
- - Generate 'Observation Confirmation Report'
MD-NEXT Demo
MD-RED
Mobile forensic software for recovery, decoding, decryption, visualization and reporting evidence data from a mobile and digital device

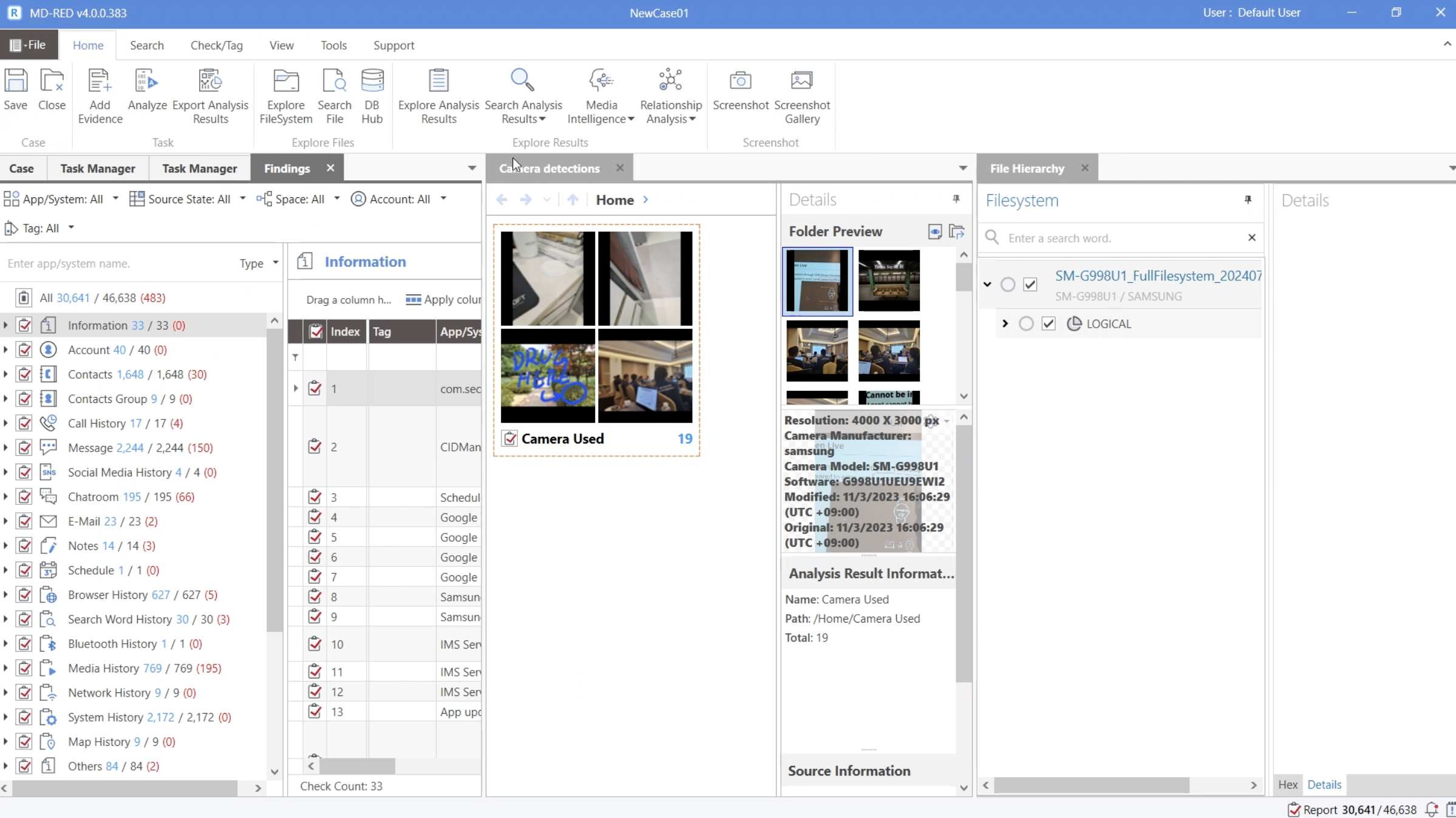

MD-RED is a forensic software for recovery, decryption, visualization, analytic data mining, and reporting of evidence data extracted via MD-NEXT or other tools. All the results of the analysis can be exported as the forensic reports for the investigation of crimes and accidents. Also, the analysis module of the latest mobile apps is quickly updated by continuous research.
Product Highlights
Recommended Specifications
- Operating System : Windows 11 64-bit or higher
- - Latest Windows update
- Processor : Intel Core i7 or higher
- Memory : 16 GB or more
-
Disk Capacity : 1 TB or more (for Installation),
10 GB or more (for usage) - Resolution : 1920 * 1080 or higher
- GPU : RTX 30 series or higher with at least 6 GB of GPU memory
Minimum Specification
- Operating System : Windows 10 64-bit or higher
- Processor : Intel Core i3 or higher
- Memory : 8 GB or more
-
Disk Capacity : 5 GB or more (for installation),
500 GB or more (for usage) - Resolution : 1024 * 768 or higher
Product components
- MD-RED Installation Software (CD/USB/Online)
- USB Dongle Key 1 EA
- External Hard Drive for WeChat analysis
- Warranty 1 Year
Key Features
Analysis Environment NEW
- - Tab-based interface for simultaneous tasks
- - Categorizes- results by app/system or artifact type
- - Combines analysis results from multiple categories
- - Manual review and deduplication support
- - Direct navigation from results to source data
Case management NEW
- - Automatic signature analysis on evidence addition
- - Concurrent media and artifact analysis
- - Multiple user profile creation
- - Faster loading for large-scale case analysis
- - Synchronization across messages, contacts, and media files
- - User-defined tagging and checked item management

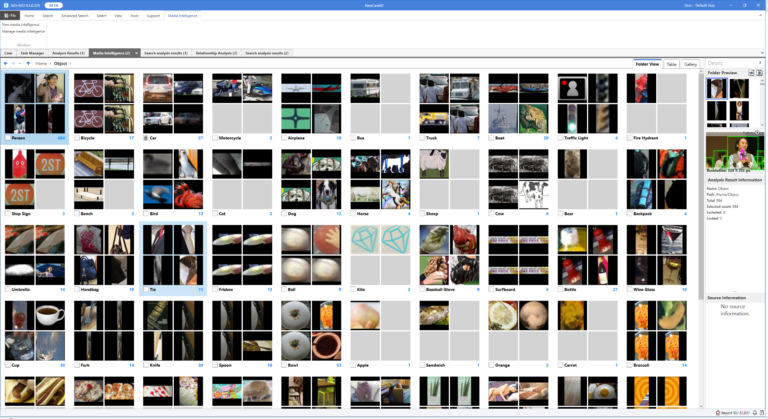

AI-Powered Media Intelligence NEW
- - AI-based object detection
- - Person detection and similarity-based grouping
- - Face search and deepfake detection
- - 80+ object categories (cars, trucks, knives, firearms, etc.)
-
- Text Recognition
-OCR text extraction from images
- Clean table view for easy searching
- Multi-language support (English, Chinese, etc.) -
- Speech Recognition
- Speech detection and analysis from audio files
- Speech-to-text conversion (STT)
- Multi-language support (English, Chinese, Vietnamese, Spanish, etc.) - - Path label display and path-based navigation
- - Media review functionality support

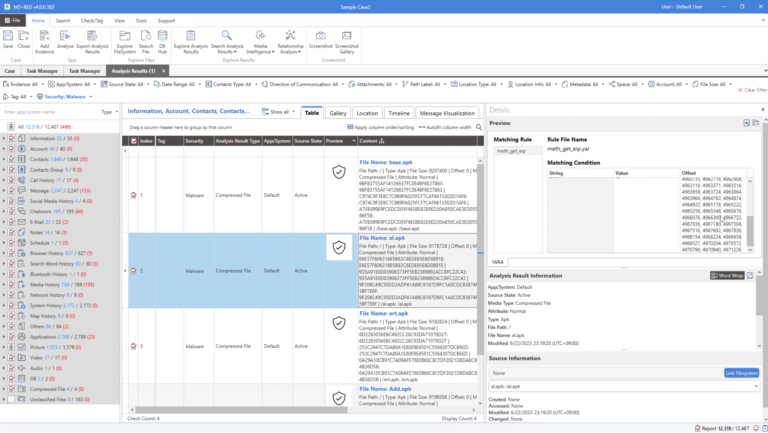

Malware Detection and Analysis NEW
- - APK file engine-based malware detection
- - YARA rule-based file malware detection
- - Manual malware designation and list management
Check and Navigation Synchronization NEW
- - Chat room and date-based message verification
- - Check status synchronization between results
- - Automatic viewer check information integration
Visualization and User Customization NEW
- - Chat message visualization and PDF export
- - Separate multi-keyword search result display
- - Tag configuration and application to results
- - Column order and sorting criteria save
Report and File Management Features NEW
- - Separate report archive list file export
- - Logical image extension .mdr support
Supports a variety of mobile phone manufacturers and mobile OS
- - Supports feature phones, smart phones and a variety of digital devices
- - Supports iOS, Android, Windows, Tizen and other mobile OS
Analysis and recovery of various filesystem
- - FAT/exFAT, ext3/4, HFS+, and other common and specialized types
- - Analysis of deleted data from unallocated area
Analyzes more than 2,500 iOS and Android applications
- - Multimedia files taken by phone camera
- - Call log, Address book, SMS/MMS, email, Memo, Internet history
- - Social media, Map, Navigation, Health, Banking, and Lifestyle app
- - Anti-forensic app
Maximized analysis performance
- - Parallel analysis via multi-core process
Decryption
-
- Decrypts encrypted messages, emails, files, and application data
- Supports analysis of Keychain and Keystore data
- Identifies encrypted document files
Deep analysis of major messenger apps
- - Data Decoding and Recovery
- - WhatsApp –Decryption of Multiple backup files
- - WeChat - Multiple account analysis, Rainbow table
- - Skype, Facebook messenger, Telegram, Wickr
- - QQ, Kakaotalk, Line, Zalo, Viber, Snapchat and many other messengers
Decodes locked screen and password information
- - Decodes Unlock Pattern, PIN, and Password
- - Data analysis via GPU
- - iPhone keychain analysis
Multimedia data recovery and analysis
- - Recovery for frame of deleted/damaged video file
- - Exclusion of pre-registered images (900,000+) using RDS (Reference Data Set)
- - Provides audio file converter (From AMR/AUD/QCP/SILK to MP3/AMR/WAV)
- - Supports playback of QCP file and Silk codec audio
New digital device analysis
- - Drone data analysis - Flight history, Multimedia data, Supports Manufacturer DJI/Parrot/PixHawk
- - IoT data analysis - AI Speakers, Smart TV, Car Navigation
Log analysis
- - Medial log, Search word log
- - System log, Network log (Bluetooth, WiFi, Cell Tower)
Social relationship analysis
- - Supports analysis for multiple phones
- - Call log, messenger, email data analysis
- - Contacts merge and split
- - Filtering by the app, period, contacts, types of communication
- - Community analysis by diverse technique
Embedded data viewers
- - SQLite database viewer
- - HEX viewer
- - PList viewer
- - Documents viewer (Text, XML, PDF, MS office, ZIP file, Executable file, Encrypted file)
- - Photo Gallery
- - Video player
- - Audio player
Visualization of analyzed data
- - GPS data and cell tower location
- - Offline/Online map (region/country/city - 3 level)
- - Time-line viewer
- - Link viewer for social relationship visualization
- - Chatting viewer for communication visualization
- - Web browser for internet history review
Advanced data filtering option
- - Various filter including file system, signature, time
- - Arraying, grouping
- - Regular expression search
- - Keyword registration
- - Bookmarking of analysis result
- - Analysis result removal tool
Python scripting IDE for user-defined analysis
- - Python script editor for advanced user
- - Code generation, Code execution and debugging
Case management and hash value verification
- - Case management
- - Grouping extracted images
- - Hash value verification on each extraction image
- - MD-NEXT Acquisition tools interworking
Reporting features
- - Hash calculation for a selected file
- - Extracts analyzed multi-media
- - Supports diverse report formats of PDF, Excel, HTML, XML and SQLite DB
- - Supports 3rd party report format like NUIX and Relativity
MD-RED
MD-PCM

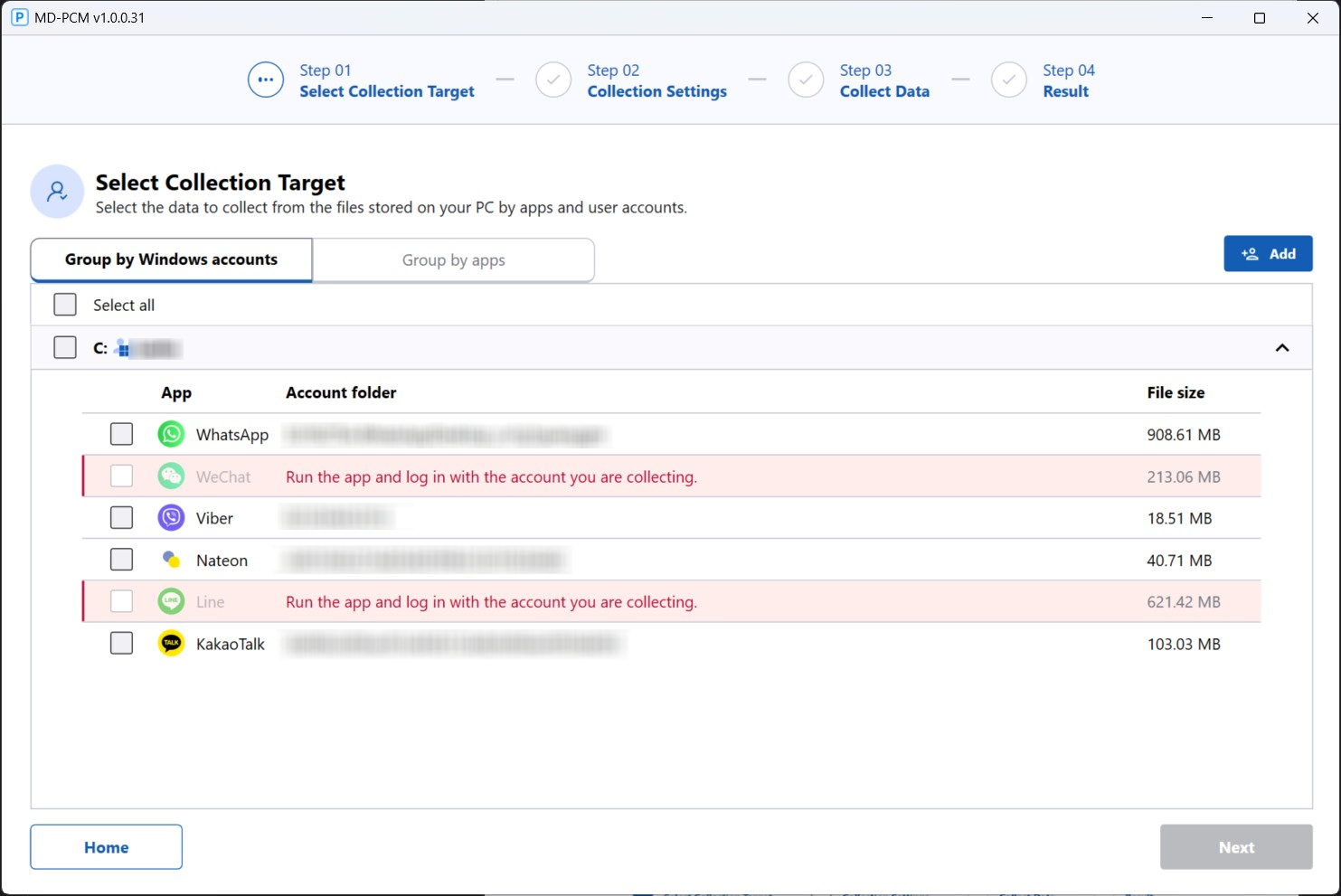

A messenger collection tool that directly collects data from messenger apps installed on PCs or acquires messenger data from PC data replicas and supports analysis through MD-RED
MD-PCM stands for PC Messenger, and is a next-generation messenger collection tool that effectively collects data from various messenger apps installed on PCs. With significantly enhanced functionality compared to existing PC collectors, it supports the collection of not only KakaoTalk but also various personal and business messenger apps such as WhatsApp, WeChat, LINE, and more.
Product Highlights
Recommended Specifications
- Operating System : OS : Windows 7/8/10 (64 bit)
- Processor : Intel Core i7 or higher
- RAM : 16 GB or more
- HDD : 128GB or more
- Display : 1920x1080 or higher
- USB : USB 2.0/3.0/3.1 more than 1 port
- Microsoft. Net Framework 4.5
Key Features

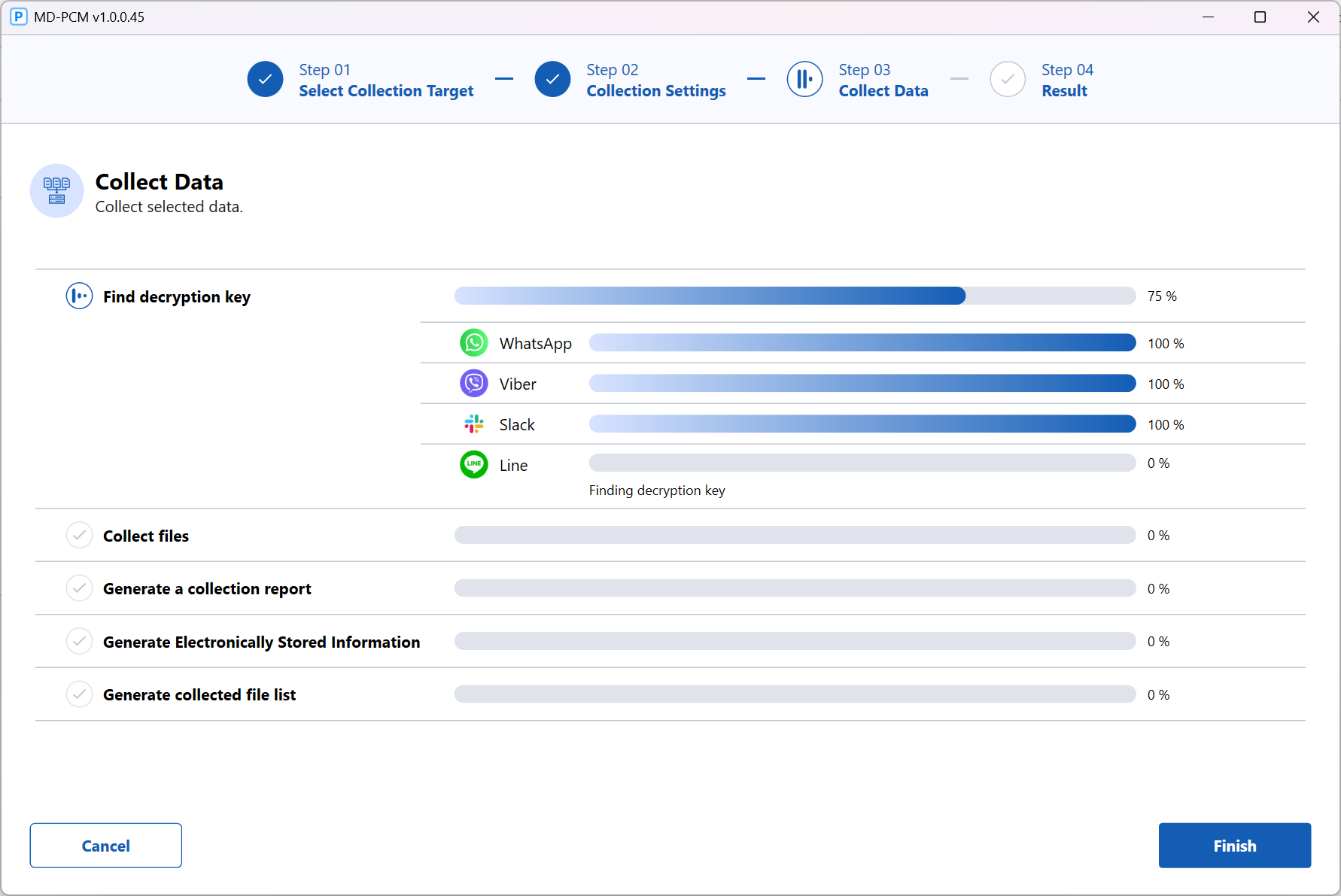

Data Extraction
- - Major PC messenger apps (WhatsApp, Line, WeChat, Telegram, Facebook, Instagram, Teams, Slack, NateOn, Viber)
- - Multiple forensic image formats (E01, DMG)
- - Direct extraction from Windows PC and storage media
- - Exported user data file support
Data Processing & Analysis
- - Decrypts encrypted databases for desktop messenger apps

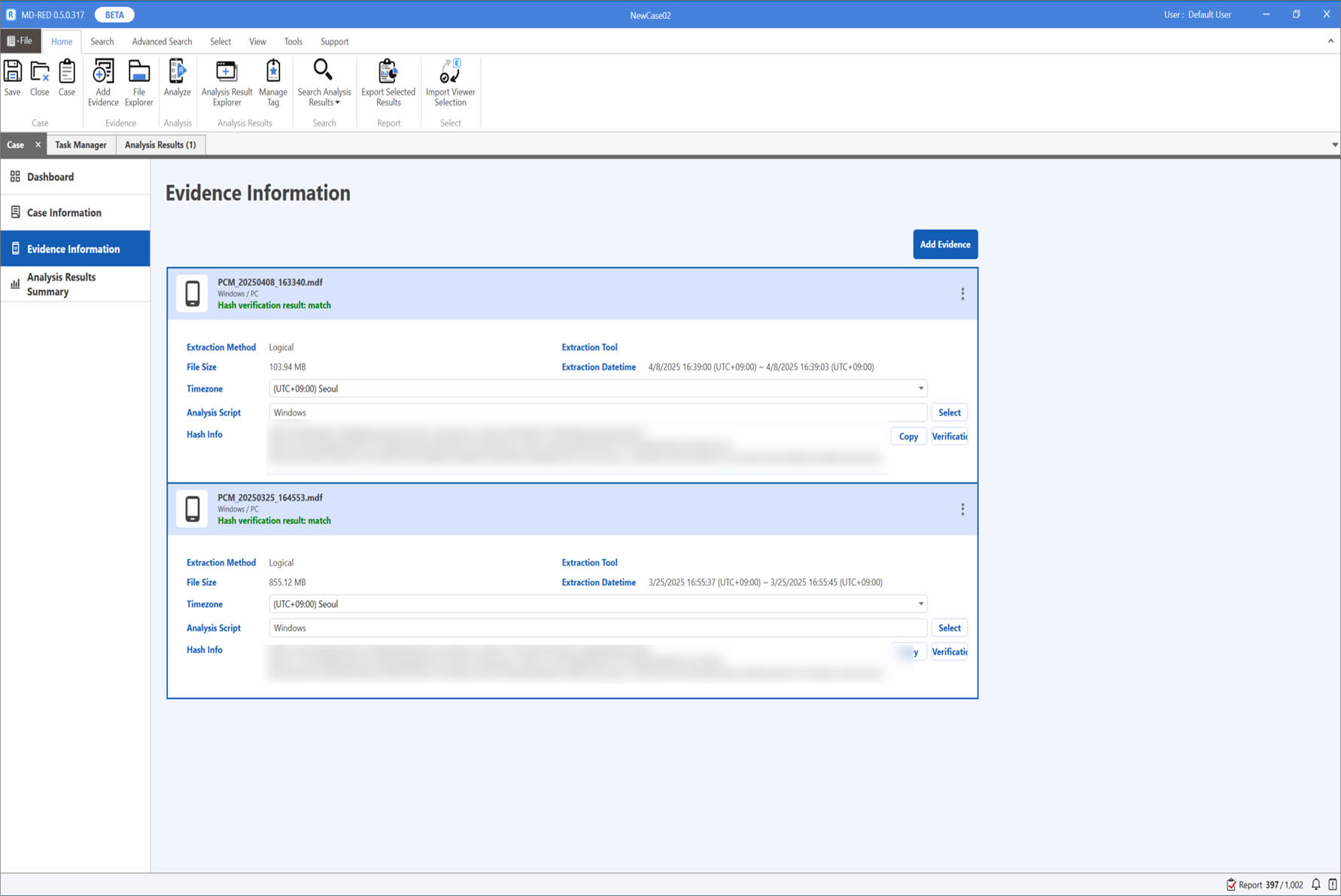

- - MD-RED4 forensic analysis tool integration
Usability Features
- - Intuitive UI and efficient workflow
- - Automatic target detection
- - Real-time extraction progress display
- - Detailed app-specific extraction guides
- - Error logs and troubleshooting reports
- - Multi-language support (English, Korean)
Reporting
-
Comprehensive extraction reports with case information
- Electronically Stored Information (ESI)
- Extraction Summary
- List of Extracted Files
MD-LIVE
Mobile forensic software for on-the-spot investigation which performs live extraction and analysis on a mobile device
MD-LIVE is a mobile live forensic product with a smooth user experience which can support logical extraction and quick data analysis.
It also supports the selective acquisition from evidence without privacy infringement, screen capture & recording of mirrored smartphone display, and recording of forensic process by an external camera via an internal recording feature.
Product Highlights
Recommended Specification
- Operating System: Windows 10 64 Bit
- Processor: Intel Core i5 or higher
- RAM: 16 GB or more
- HDD: 2 TB or more
- Screen Resolution: 1920 x 1080 or bigger
Minimum Specification
- Processor: Intel Dual Core or higher
- RAM: 8 GB or more
- HDD: 1TB or more
- Screen Resolution: 1024 x 768 or bigger
Product components
- MD-LIVE Installation Software (USB/Online)
- USB Dongle Key 1 EA
- Warranty 1 Year
Key Features
Selective extraction and analysis of evidence data
- - Prioritizes on-site proceeding and acquiring, so image and case files can be analyzed afterwards
- - Only data related to the case can be selected and analyzed
- - Selective acquisition of data for the protection of personal information
- - Scans important applications based on time and frequency of use

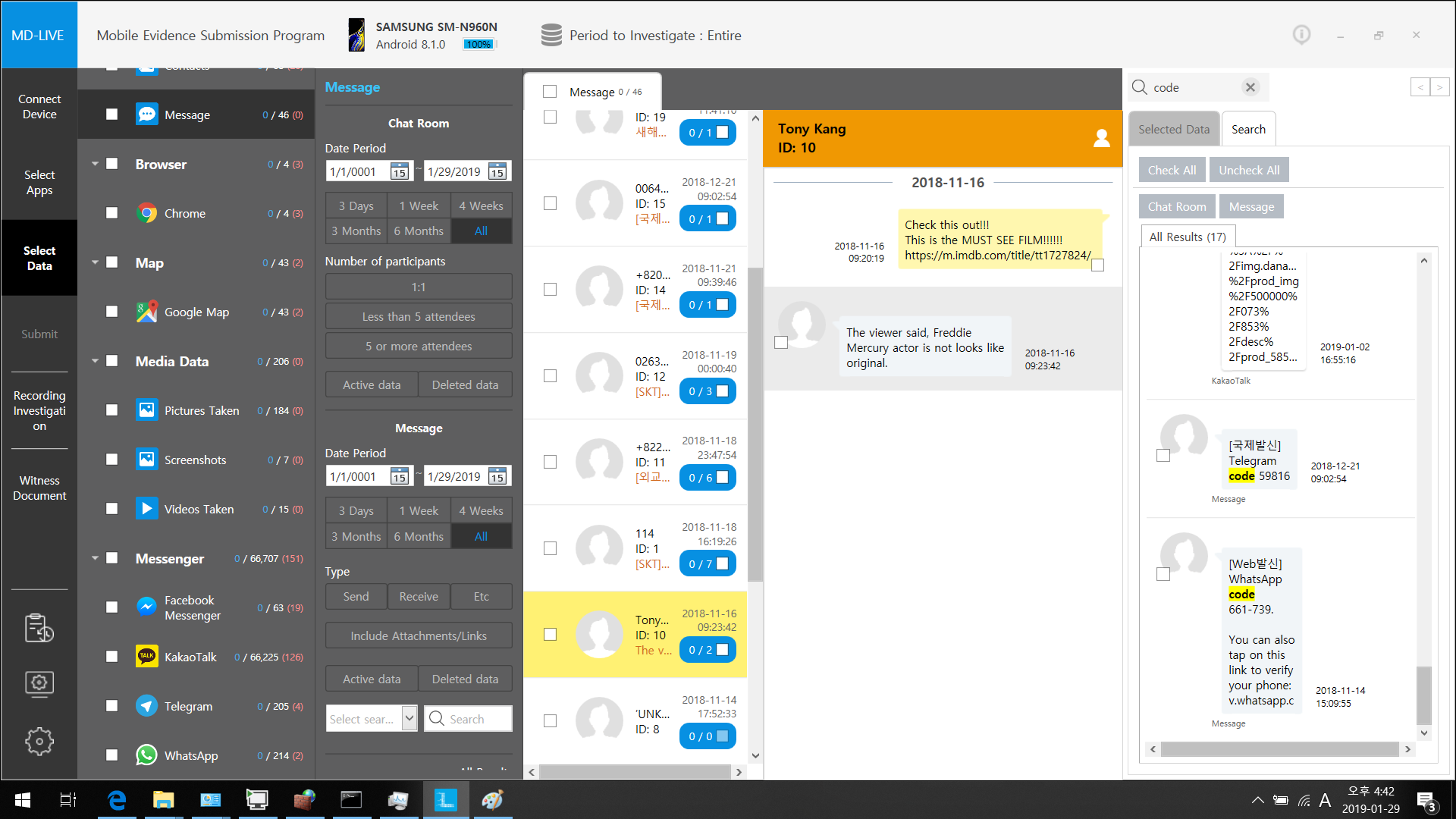

Analysis data view just like looking at a real smartphone screen
- - Quick evidence data identification by providing data view themes similar to that of a smartphone app
Integrated data viewers
- - Includes the viewers to display files such as photo, video, audio, document, map and website browsing history

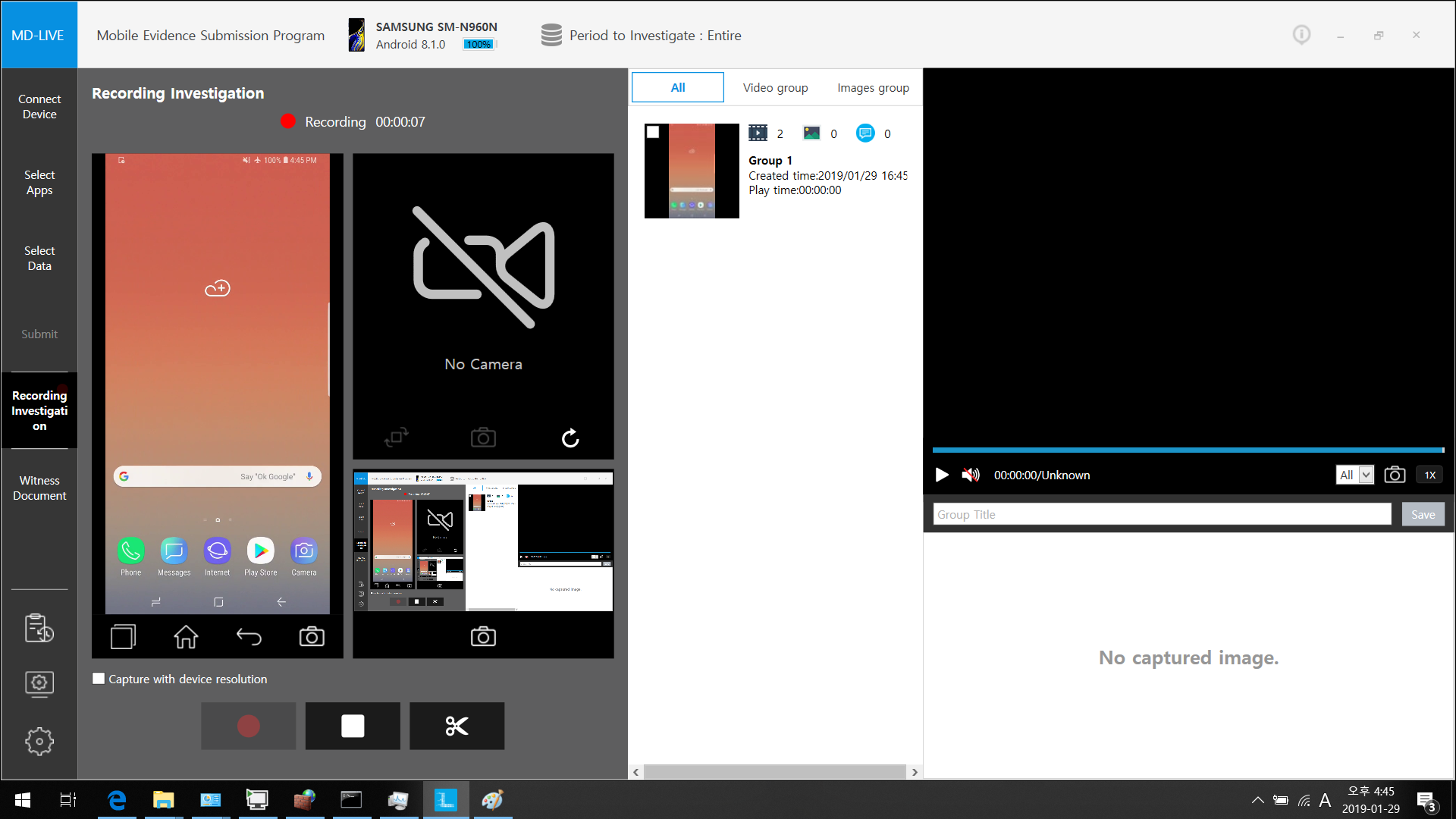

Mirroring and remote control of smartphone display
- - Smartphone screen mirroring and remote control can be used when smartphone display is broken or the prevention of unwanted operation on the phone
- - The mirrored screen can be captured and recorded as evidence
Screen recording
- - PC screen recording of MD-LIVE to reproduce and verify its forensic process
Easy and concise process
- - Intuitive user interface
- - Auto-detection of smartphone model
- - Automated analysis after data acquisition
Reporting features
- - Exports reports into PDF and Excel formats
- - Supports 'Witness Document' generation
- - Supports a various HASH algorithms MD5, SHA1/224/256/384/512, RIPEMD128/160/256/320
External standing camera (Option)
- - For taking a photo of the evidence and its display or recording the investigation procedure
- - Hardware-based auto-focusing
- - Anti-reflection pad
MD-LIVE Demo

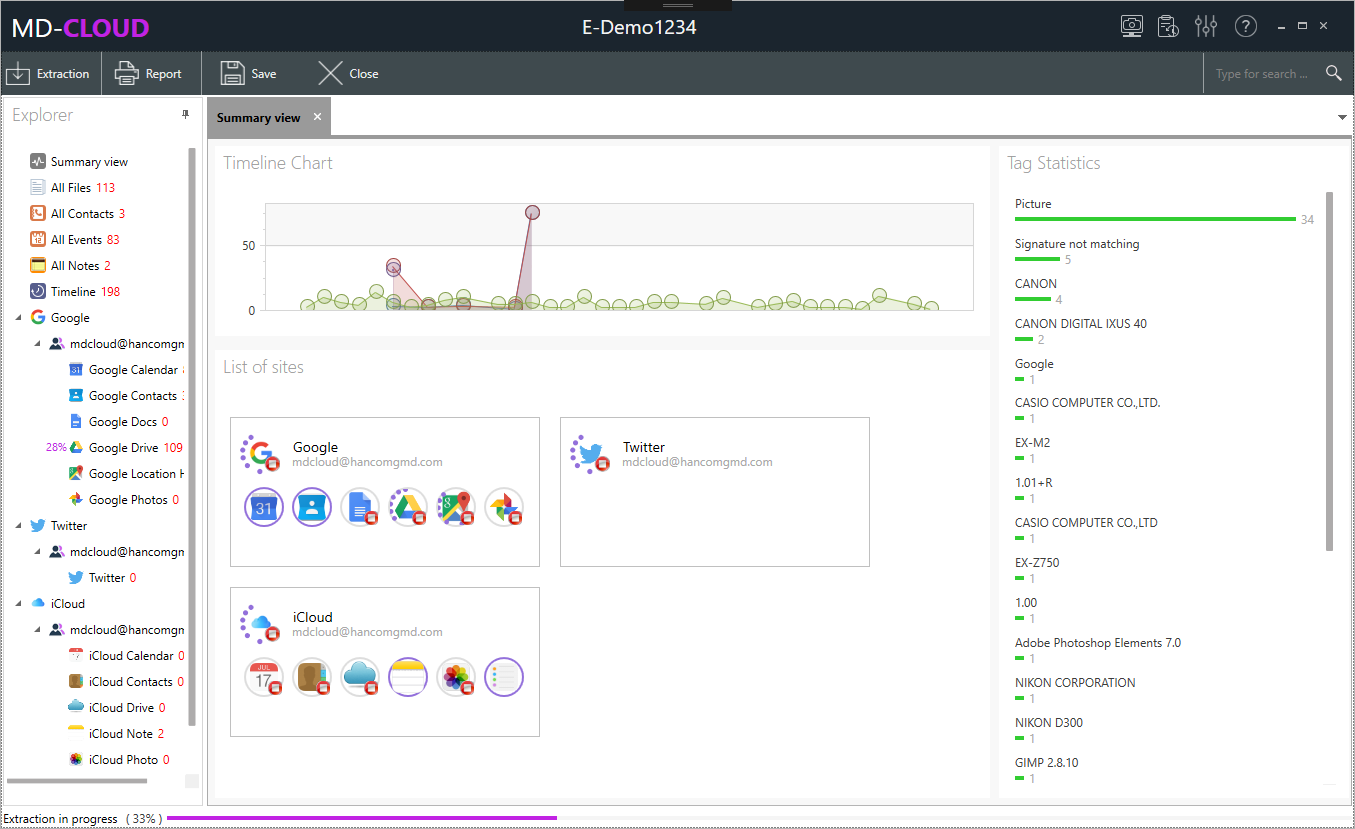

MD-CLOUD
Digital forensic software for extraction and analysis of cloud account.
MD-CLOUD is the most intuitive digital forensic software tool that extracts and analyzes data from cloud data storages. It supports a broad range of cloud services.
Product Highlights
MD-CLOUD is the most intuitive digital forensic software tool that extracts and analyze the data from the cloud data storage. It supports a broad range of cloud services.
Recommended Specifications
- Operating System : Windows 10 64Bit or above
- Processor : Intel Core i7 or above
- Memory : 32 GB or more
-
Disk Capacity : 2 GB or more (for Installation),
1 TB or more (for usage) - Resolution : 1920 * 1080 or higher
Minimum Specifications
- Operating System : Windows 7 64Bit or above
- Processor : Intel Core i3 or above
- Memory : 8 GB or more
-
Disk Capacity : 2 GB or more (for Installation),
500 GB or more (for usage) - Resolution : 1024 * 768 or higher
Product components
- MD-CLOUD Installation Software (CD/USB/Online)
- USB Dongle Key 1 EA
- Warranty 1 Year
Key Features
Supports various cloud services acquisition
- - Google, iCloud, Samsung Cloud, Naver cloud, IMAP/POP3, Evernote, One Drive, Twitter, Baidu
Specialized in Asian Cloud service
- - Baidu cloud in China
- - Naver cloud in Korea
Acquisition of cloud accounts for IoT devices
- - IoT data extraction from AI speaker and Smart home equipment
- - Public or non- public APIs authentication
Supports various authentication methods
- - ID/PASSWORD authentication
- - Captcha security authentication
- - 2-step security authentication
- - Authentication using credential information
Web capture feature
- - Supports web capture when cloud acquisition does not offer API
Real-time acquisition status check
- - Monitors data acquisition in real time
Easy user-friendly use
- - Intuitive user interface and quick data extraction
Interwork with MD-RED
- - Acquires data with credentials information analyzed by MD-RED
Simple search using 'Tag’ feature
- - Supports easy and fast search with pre-categorized 'Tag.'

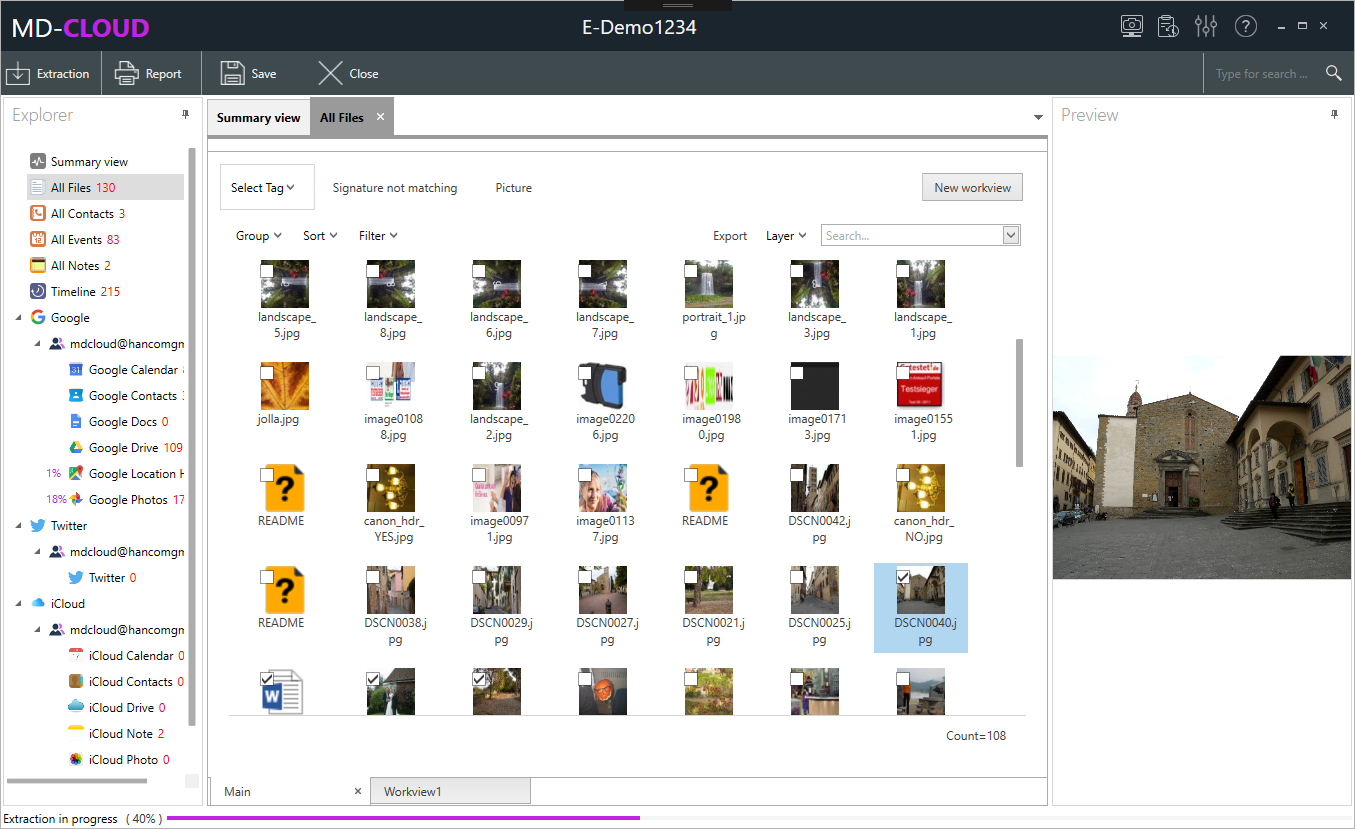

Various built-in viewers
- - Supports preview of Image, video, document, web page, and email
Snapshot of filtering option
- - Supports snapshot of the filter and sort configuration for reuse in the workspace
Assurance of evidence data integrity
- - Guarantees integrity of evidence data based on powerful hash algorithms such as MD5 and SHA256
Reporting features
- - Supports report format such as PDF and Excel
MD-CLOUD Demo
